Outdoor electrically heated apparel uses built-in heating elements powered by rechargeable batteries to convert electrical energy into heat, providing active warmth for wearers in extremely cold environments. Simply put, it is a “wearable mobile heating system.”
Used in polar expeditions, high-altitude mountaineering, outdoor operations, and winter sports, heated apparel helps users move away from heavy, bulky layers while maintaining core body temperature in extreme cold. Built-in temperature sensors and intelligent controllers provide multiple temperature settings, enabling users to enjoy lasting and comfortable warmth in frigid conditions.
Whether a heated garment “heats up quickly,” “lasts long enough,” and “operates safely” depends largely on the key battery hidden inside its side pocket or inner layer—the component that powers the heating elements.
In recent years, the increasing frequency of extreme cold weather, the growth of outdoor operations and winter sports, and advances in heating-material technology have driven electrically heated apparel from professional polar-exploration equipment into the mass consumer market.
In professional applications, heated apparel helps border defense personnel stay warm while on duty. In civilian applications, it helps outdoor workers in cold regions, people who are particularly sensitive to cold, and winter sports enthusiasts cope with low temperatures. Electrically heated apparel is becoming a practical solution for winter travel and occupational protection.
Against this background, the battery is not merely an energy source—it is central to product reliability and safety. The industry is less concerned with the battery’s nominal capacity than with whether it can remain stable and reliable when it matters most:
When the ambient temperature drops to -20°C or even -40°C, can the battery discharge normally without shutting down?
When the user operates the garment at high power for an extended period, can the battery provide sufficient runtime?
When the battery is placed inside a clothing pocket and exposed to friction during movement and condensation caused by temperature differences, can it remain completely safe?
These requirements are driving heated-apparel batteries to evolve from “ordinary consumer-grade cells designed for room-temperature use” toward solutions featuring wide-temperature operation, high energy density, high-power output, and enhanced safety.

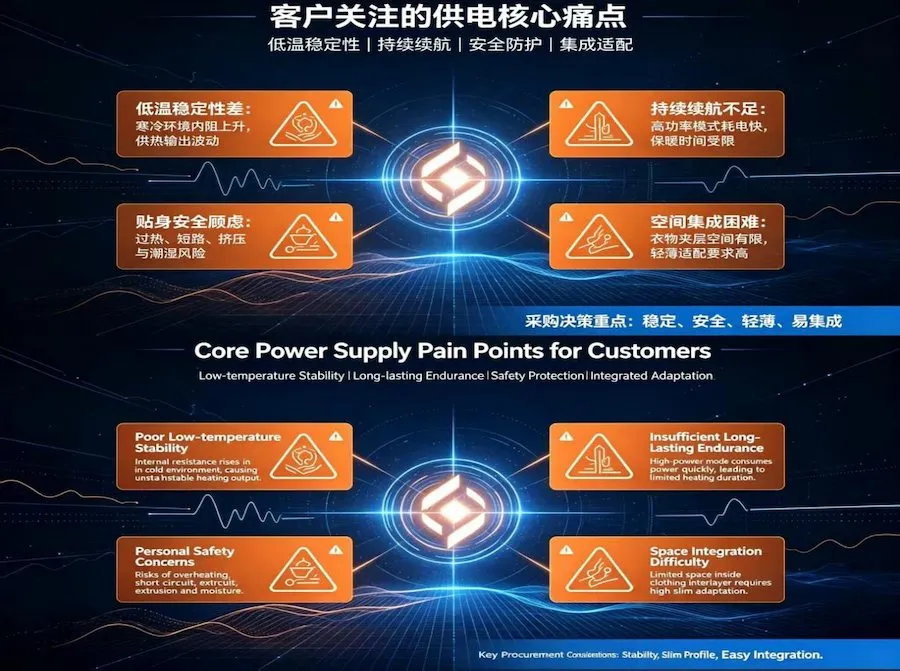

Although heated apparel is not particularly complex in structure, its operating principle and usage scenarios impose much higher requirements on the battery than ordinary digital products.
Stable Output in Low-Temperature Environments
The internal resistance of conventional lithium batteries rises sharply in sub-zero temperatures, causing a significant drop in discharge capacity or even preventing the device from powering on.
In extremely cold environments, the battery must provide excellent low-temperature discharge performance to ensure that the garment begins heating immediately after activation.
Continuous High-Power Discharge
The heating garment requires relatively high current when it starts up and operates at high power. The battery must therefore provide stable high-power discharge to ensure that the heating elements warm up quickly and maintain a consistent temperature.
Lightweight Design within Limited Space
The side pockets or inner layers of heated apparel have limited space. The battery must offer sufficient capacity while remaining compact and lightweight, without compromising wearing comfort or freedom of movement.
Intrinsic Safety When Worn Close to the Body
The battery is placed inside a clothing pocket and close to the wearer’s body. It must therefore provide reliable protection against overcharge, over-discharge, overcurrent, short circuits, and excessive temperature, eliminating the risk of fire or explosion.
Among various battery technologies, polymer lithium-ion batteries have become a mainstream power solution for heated apparel due to their comprehensive performance advantages.
| Core Requirement | Polymer Battery Solution |
|---|---|
| Long runtime in extremely cold conditions | Uses a low-temperature-resistant material system to maintain stable discharge at temperatures as low as -40°C, with a capacity-retention rate significantly higher than that of conventional products on the market. |
| High-power output | Supports continuous power output of 15–25 W to meet the current requirements of heating multiple areas simultaneously, enabling rapid warm-up without temperature drop-off. |
| Lightweight and body-conforming design | The polymer pouch format enables compact and lightweight designs that fit the limited space of jacket pockets without affecting wearing comfort. |
| Intrinsic safety | In the event of extreme thermal runaway, the polymer pouch structure will swell and release gas rather than explode. Combined with a high-precision BMS, it provides multiple layers of hardware-level protection. |
Safety is especially important for products worn close to the body. Because heated apparel is in direct contact with the wearer, high-quality polymer batteries should comply with international safety certifications such as UN38.3, UL, and CE.
With built-in NTC thermistors and hardware-level protection boards, the battery can instantly disconnect the circuit in response to abnormal heating, an external short circuit, or excessive compression, helping protect the user’s personal safety.
As a national-level “Little Giant” enterprise specializing in niche markets and with more than two decades of experience in the battery industry, BPI has developed a complete and mature product portfolio in the field of polymer lithium-ion batteries. The company has also accumulated extensive experience in smart wearables, medical devices, and other applications with exceptionally high safety and reliability requirements.
BPI polymer batteries cover both high-energy-density systems and wide-temperature operating systems. They can be combined and customized for different heated-apparel applications, including lightweight everyday garments and high-power professional workwear.
BPI’s wide-temperature battery series and intelligent BMS solutions have been widely used in outdoor equipment requiring excellent low-temperature performance and high safety standards.
From the product-design stage, BPI takes application scenarios as its starting point. In response to the two major challenges of heated apparel—“sharp capacity loss at low temperatures” and “operational safety”—BPI uses cold-resistant electrolyte formulations in its cells to ensure discharge efficiency and capacity retention in extremely cold environments that are significantly better than those of conventional products.
Structurally, BPI adopts polymer pouch formats to achieve compact and lightweight designs. For safety, reinforced tabs and high-toughness packaging materials help maintain airtight integrity during strenuous movement or accidental compression.
Founded in 2002, BPI is a national-level High-Tech Enterprise. The company operates two major production bases in Shenzhen and Jiangxi, employs more than 1,400 people, and has a daily production capacity of over 1.5 million units, providing strong delivery capabilities.
BPI has obtained IATF 16949, ISO 9001, ISO 14001, and other management-system certifications. Its products have passed international certifications including UL, CE, and UN38.3. The company has applied for nearly 200 patents, and its products are exported to more than 80 countries and regions worldwide.
BPI has developed mature dedicated battery solutions for the outdoor heated-equipment market.

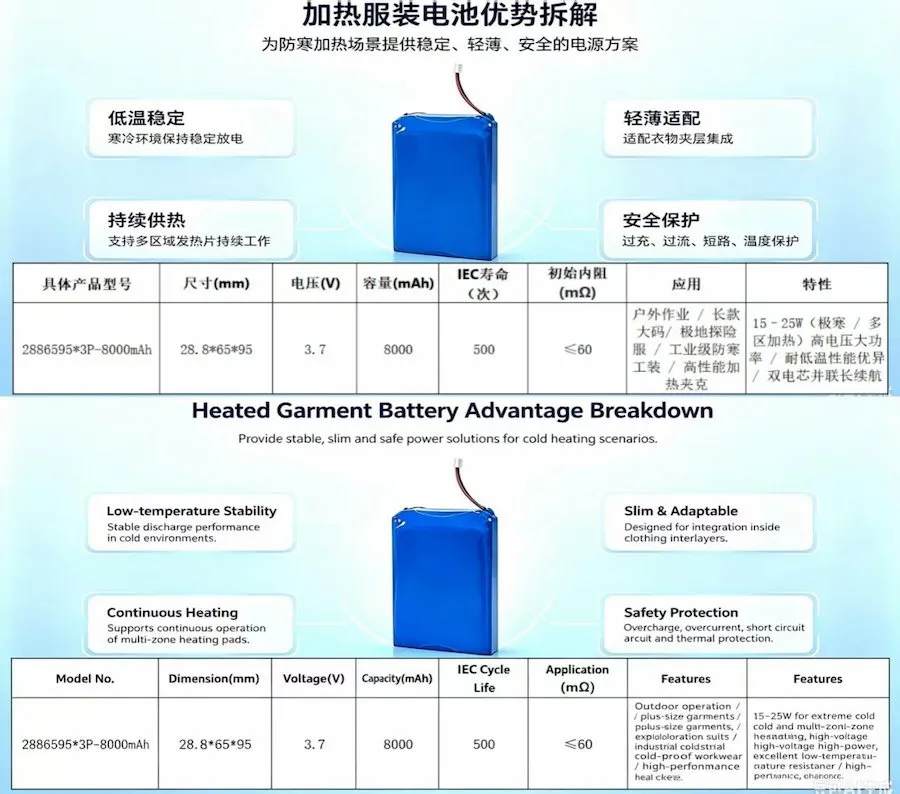

Take model 2886595 as an example. This product uses a 1S3P series-parallel configuration, measures 28.8 × 65 × 95 mm, has a nominal voltage of 3.7 V, a capacity of up to 8,000 mAh, an IEC cycle life of 500 cycles, and an initial internal resistance of ≤60 mΩ.
Designed specifically for extremely cold environments and professional outdoor operations, this solution supports 15–25 W high-power output. It can power simultaneous heating across multiple areas and provide rapid warm-up, while maintaining stable discharge performance under demanding low-temperature conditions.
The battery provides lasting power for outdoor workwear, long-length and plus-size heated garments, polar-exploration apparel, industrial cold-weather workwear, and high-performance heated jackets.
Its parallel-cell design further enhances long-runtime performance, meeting the essential need for extended outdoor operations in extremely cold environments.
Mistake 1: Using Ordinary Consumer-Grade Cells Designed for Room Temperature
The internal resistance of ordinary room-temperature batteries rises sharply below -10°C, easily triggering the device’s low-voltage protection and interrupting heating.
If the current is forcibly increased, the battery may suffer a reduction of more than half its service life in mild cases, while more serious cases may lead to an irreversible risk of thermal runaway.
Mistake 2: Insufficient Structural Protection and Neglect of Complex Outdoor Conditions
Outdoor use inevitably involves wind, snow, movement-induced vibration, and condensation caused by temperature differences.
Battery packs that have not undergone rigorous reliability testing may develop interface oxidation, seal failure, or loosened internal solder joints during long-term use. In mild cases, the product may stop working; in severe cases, short circuits may occur.
Mistake 3: Pursuing Capacity Blindly while Ignoring Space Limitations
Jacket pockets offer limited space. Some manufacturers use excessively thick cells or rigid enclosures to increase capacity, resulting in bulky batteries that make the garment uncomfortable and inconvenient to wear.
Batteries for heated apparel should achieve the best balance among capacity, size, and weight. Polymer batteries are generally the preferred choice.
In advanced outdoor cold-weather equipment, the most important components are often not the most visually impressive. The same is true of heated apparel and the polymer battery inside it.
BPI polymer batteries continue to create value in these “invisible yet essential” areas through stable, reliable, predictable, and intrinsically safe performance.
They not only provide a continuous supply of electrical energy for heating elements, but also use rigorous quality control to ensure that equipment remains stable and reliable in harsh, extremely cold environments. As a result, users can face severe cold with greater confidence and peace of mind.
In outdoor heated-equipment applications, the battery is never merely an energy-storage component. It is a core part of the complete system’s safety and reliability.
BPI consistently applies strict standards as the foundation of product development and manufacturing, with full-process traceability and controllability. Throughout the product’s years of service, performance changes remain predictable, risks remain controllable, and quality remains assured.
For batteries in outdoor heated equipment, choose safety, choose reliability, choose BPI!
Q: Can BPI polymer batteries be customized according to the dimensions of a jacket pocket?
A: Yes. Polymer pouch cells naturally offer design flexibility. Based on the dimensional limitations of a jacket’s side pocket or inner layer, BPI can provide customized battery packs in various sizes. This helps maximize the use of limited space while achieving the best balance between capacity and compactness.
Q: Can the battery discharge normally at -40°C?
A: Yes. BPI low-temperature polymer batteries use a cold-resistant formulation. At -40°C, their capacity-retention rate is significantly higher than that of conventional products on the market, helping ensure immediate heating in extremely cold conditions.
Q: How can low-temperature charging problems be resolved?
A: BPI’s BMS includes a pulse preheating function. In extremely cold environments, the battery first heats itself to a safe charging temperature before charging begins. This effectively addresses the difficulties of low-temperature charging and helps ensure that the battery is ready for use whenever needed.
Q: Do the products meet certification requirements for entry into global markets?
A: Yes. BPI products have passed major international safety certifications, including UN38.3, UL, CE, RoHS, PSE, and KC. They are manufactured in strict accordance with advanced quality-management-system standards, helping customers market their products successfully in China and overseas markets.
Q: How does BPI ensure the absolute safety of polymer batteries placed inside clothing pockets?
A: BPI provides three layers of protection:
Polymer pouch structure: In the event of extreme thermal runaway, the battery will swell rather than explode.
High-precision temperature monitoring: The BMS uses built-in high-precision NTC sensors to monitor cell temperature in real time, together with hardware-level over-temperature power-off protection.
High-toughness aluminum-plastic film packaging: The packaging is resistant to puncture and compression, helping prevent leakage in the event of accidental impact or pressure.
