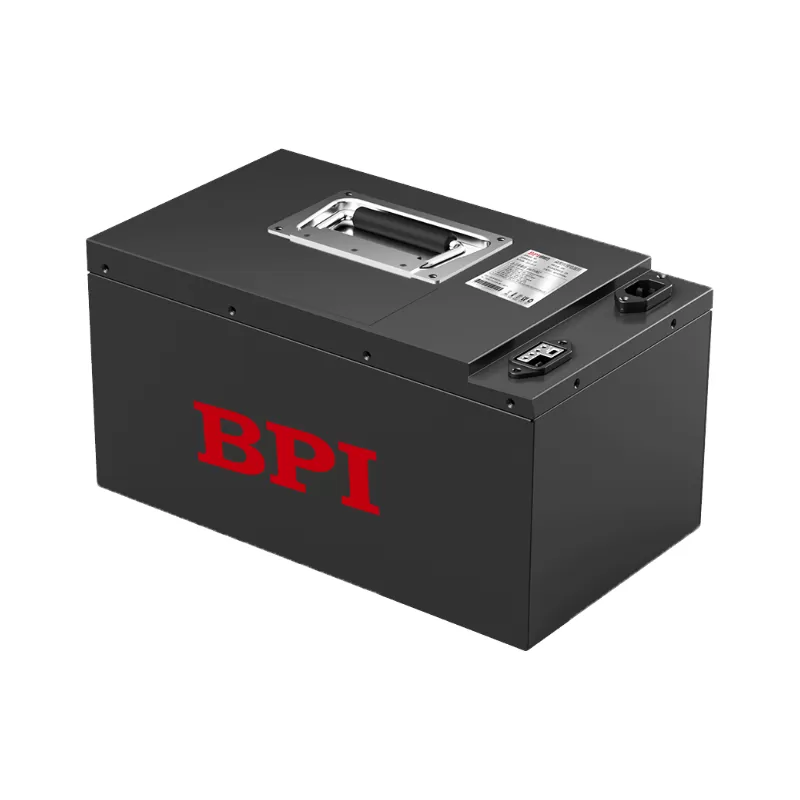

A 48V small-power LiFePO4 battery is a power solution specifically designed for various light electric vehicles and mobile robots. Its main features include strong power output, fast response, an intelligent “brain” BMS, a robust structure with high adaptability, and a balance of safety and long lifespan. It is equipped with CAN/RS485 communication to interface with the vehicle controller, and supports high-rate discharge (1C, 2C, or even higher), delivering high instantaneous current to meet the demanding discharge requirements of electric vehicles.
| Model | Nominal Voltage | Nominal Capacity | Size(mm) | Weight | Continuous Discharge Current | Communication Methods | Protection Level | Applicable Motor | Charging Parameters | Operating Temperature |
| 4820 | 48V | 20Ah | 180*170*310 | 9±1Kg | ≤20A | Bluetooth, RS485 | IP65 | ≤1000W | 54V10A(Max) | Charge0°C~60℃, Discharge-20°C~60°C |
| 4824 | 48V | 24Ah | 180*170*310 | 9±1Kg | ≤30A | Bluetooth, RS485 | IP65 | ≤1000W | 54V10A(Max) | Charge0°C~60℃, Discharge-20°C~60°C |
| 4830 | 48V | 30Ah | 180*170*310 | 9±1Kg | ≤45A | Bluetooth, RS485 | IP65 | ≤1000W | 54V10A(Max) | Charge0°C~60℃, Discharge-20°C~60°C |
Up To 3 Times Compared To The Same Period Last Year
>2000 Cycles
60% Lighter Than The Same Product
Saves 40% Installation Space
Free Of Heavy Metal Pollution
Reduced By 60%
