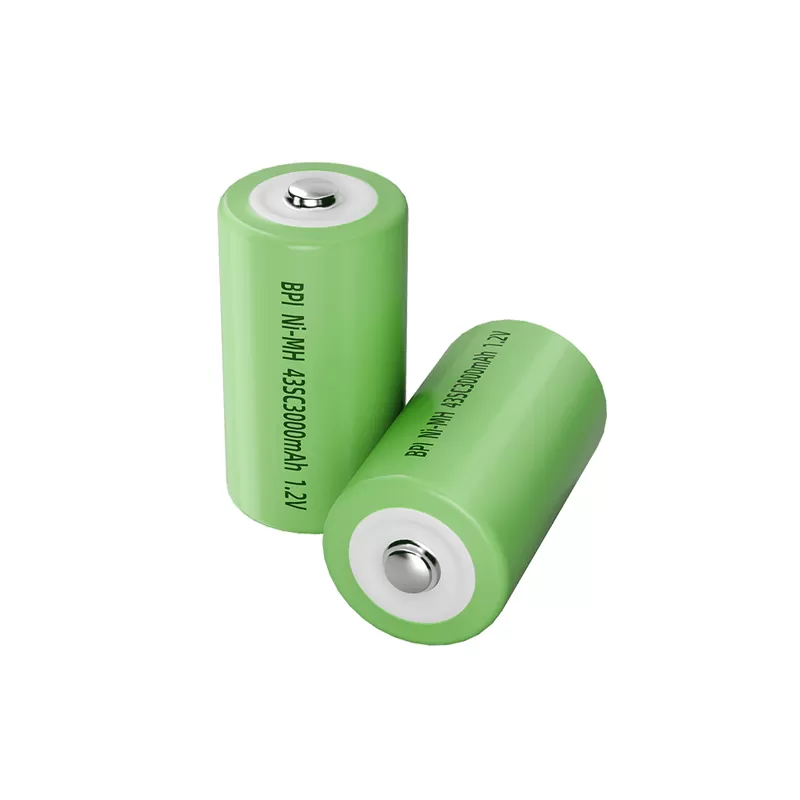

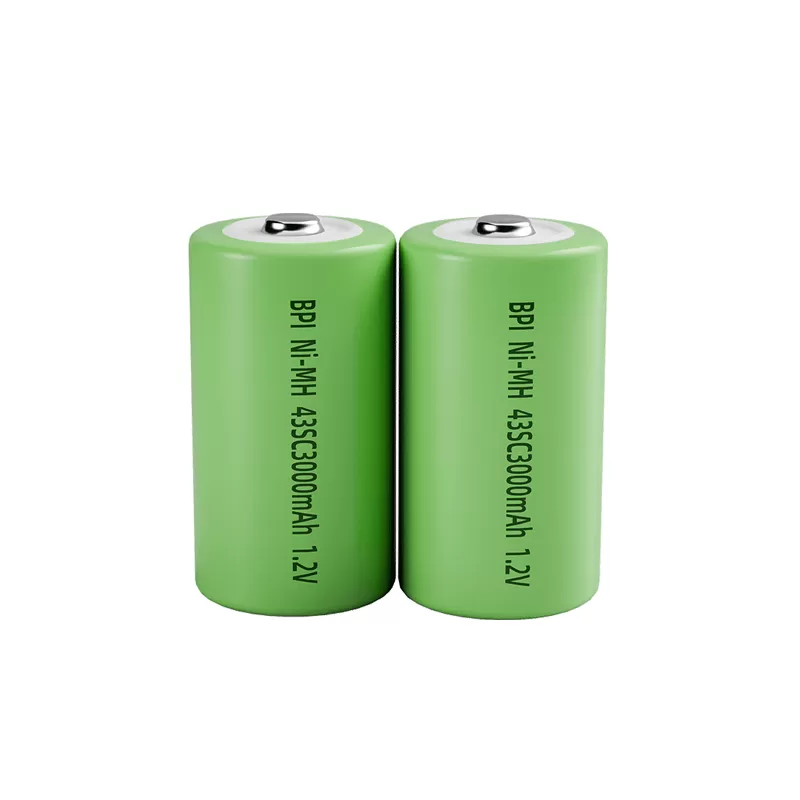

The SC-type nickel-metal hydride (NiMH) battery is categorized into standard SC-type and high-power SC-type variants. It has a capacity range of 1,300–3,000 mAh, a height of 41.5–43.0 mm, and a diameter of 21.5–22.5 mm. It is suitable for applications such as electric windows, lighting systems, mining equipment, and more.
Model | Nominal Voltage (V) | Internal Resistance (mΩ) | Diameter (mm) | Length (mm) | Weight (g) | IEC Cycle Life (cycles) |
1.2 | 15 | 21.8~22.5 | 31.5~33.0 | 35 | >1000 | |
1.2 | 15 | 21.5~22.5 | 41.0~42.0 | 34 | >1000 | |
1.2 | 12 | 21.5-22.5 | 41.5-43.0 | 52.5 | >1000 | |
1.2 | 8 | 21.5-22.5 | 41.5-43.0 | 54 | >1000 |
Explosion-Proof Design
Long-Lasting And Stable Power Support
Real-Time Temperature Monitoring
Low Internal Resistance
Reliable High Capacity
Meets High Power Requirements
