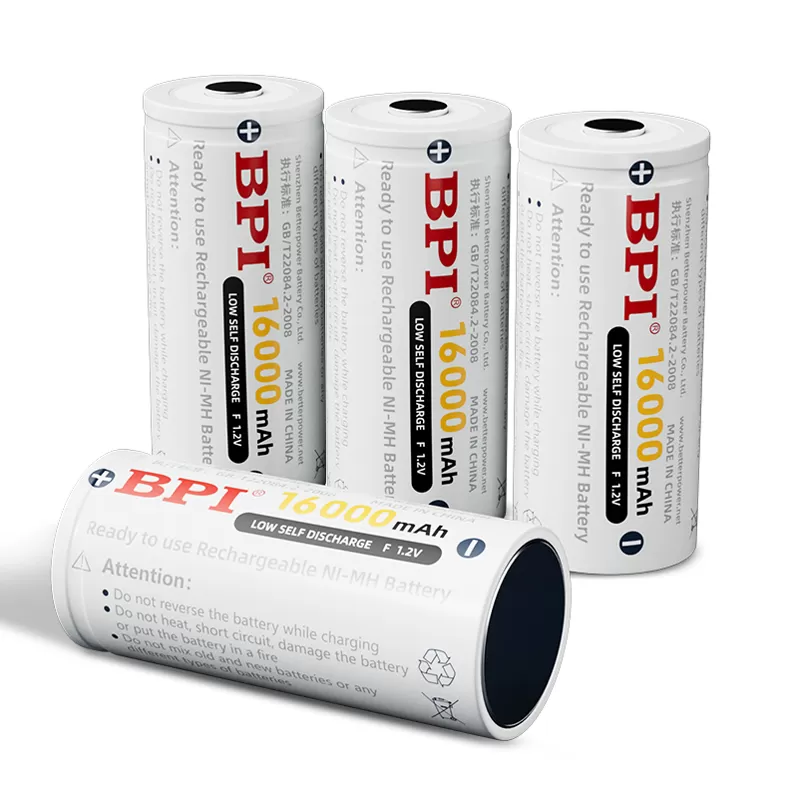

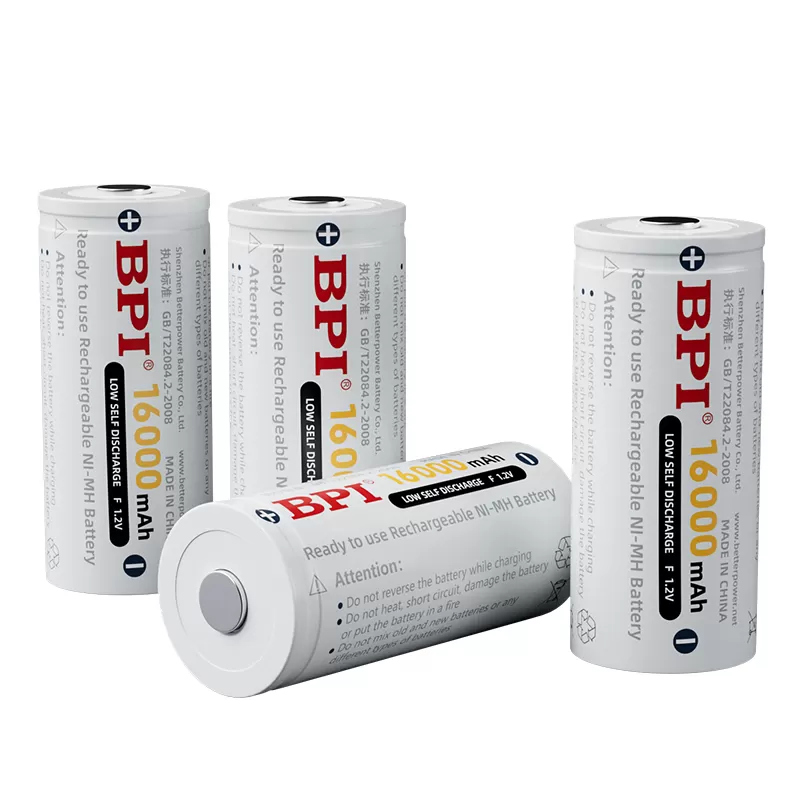

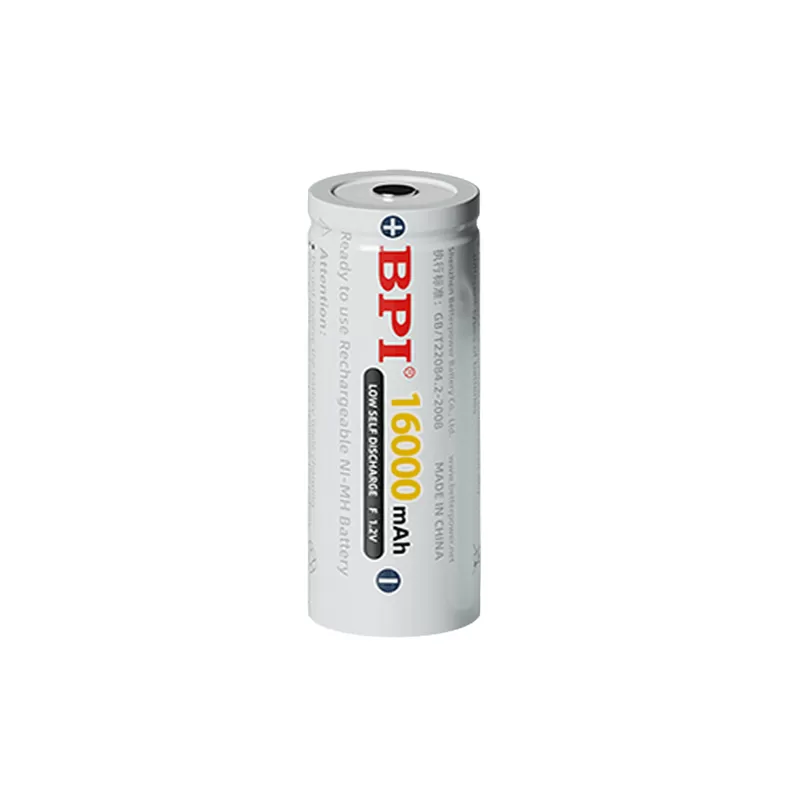

F-Type Ni-MH Batteries

Name: F-Type Ni-MH Batteries
Brand: Shenzhen Better Power Battery Co., Ltd.
Availability: InStock

The F-type nickel-metal hydride (NiMH) battery is one of the larger single-cell NiMH batteries, with a diameter of 32.0–32.5 mm, a height of 88.5–91 mm, and a capacity ranging from 10,000 mAh to 16,000 mAh. It features relatively standardized parameters among NiMH battery models.

Get Free Quote

Specifications of F-Type Ni-MH Batteries

Model	Nominal Voltage (V)	Internal Resistance (mΩ)	Diameter (mm)	Length (mm)	Weight (g)	IEC Cycle Life (cycles)
BPI-89F10000 mAh	1.2	≤15	32.0~32.5	87.5~89.0	223	＞1000
BPI-89F12000 mAh	1.2	≤15	32.0~32.5	87.5~89.0	234	＞1000
BPI-89F13000 mAh	1.2	≤15	32.0~32.5	87.5~89.0	234	＞1000
BPI-89F14000 mAh	1.2	≤15	32.0~32.5	87.5~90.0	244	＞1000
BPI-90F16000 mAh	1.2	≤15	32.0~32.5	88.5~91.0	264	＞1000
BPI-89F10000RF mAh	1.2	≤15	32.0~32.5	87.5~89.0	223	＞1000
BPI-89F12000RF mAh	1.2	≤15	32.0~32.5	87.5~89.0	234	＞1000
BPI-89F13000RF mAh	1.2	≤15	32.0~32.5	87.5~89.0	234	＞1000
BPI-90F13000RF mAh	1.2	≤15	32.0~32.5	88.5~91.0	231	＞1000

Key Characteristics of F-Type Ni-MH Batteries

Superior Safety Performance

Explosion-Proof Design

Efficient and Stable Energy Output

Long-Lasting And Stable Power Support

Temperature Monitoring

Real-Time Temperature Monitoring

Low Short-circuit Risk

Low Internal Resistance

High Capacity

Reliable High Capacity

High Current Discharge Capability

Meets High Power Requirements

Features of F-Type Ni-MH Batteries

Applications of F-Type Ni-MH Batteries

The F-type Ni-MH battery offers outstanding advantages, including a high capacity of 16,000 mAh, providing long-lasting power for devices. It is ideal for scenarios requiring substantial energy reserves, such as backup power for specialized equipment, reducing replacement frequency. With excellent cycle life and lower long-term costs, it can be customized (e.g., size, capacity, protection circuits, cable length) based on client requirements. Our R&D team collaborates closely with customers to deliver optimal power solutions.

Additional features include:

High capacity
Low self-discharge
No memory effect
Extended cycle life
Rapid charging capability
Stable voltage output
Superior safety performance
Low short-circuit risk
Wide operating temperature range
Compatibility with multiple devices
Eco-friendly and pollution-free
Multiple certifications (UL/CE/Battery Directive Certification IEC 62133)

Widely used in lighting, emergency power supplies, medical devices, mining equipment, and other fields.

Related NiMH Batteries

D-Type Ni-MH Batteries

D-Type Ni-MH Batteries offer many benefits. They can supply long-lasting power for high-power devices (such searchlights, power tools, and outdoor speakers) with a capacity of up to 17,000 mAh.

C-Type Ni-MH Batteries

C-Type Ni-MH Batteries have a diameter of 25.0-25.5 mm, a height of 48.5-50.0 mm, and a capacity between 2,600 and 5,500 mAh. Applications for them include mining equipment, lighting systems, electric windows, and more.

F-Type NiMH Explosionproof Battery

F-Type NiMH Explosion-Proof Battery has a diameter of 32.0-32.5 mm, a height of 88.5-91 mm, and a capacity of 10,000-16,000 mAh. Among NiMH cell models, it exhibits relatively stable performance.

C-Type Ni-MH Explosionproof Battery

C-Type NiMH Explosion-Proof Battery has a diameter of 25.0–25.5 mm, a height of 48.5–50.0 mm, and a capacity between 2,600 and 5,500 mAh. Applications for it include mining equipment, lighting systems, electric windows, and more.
